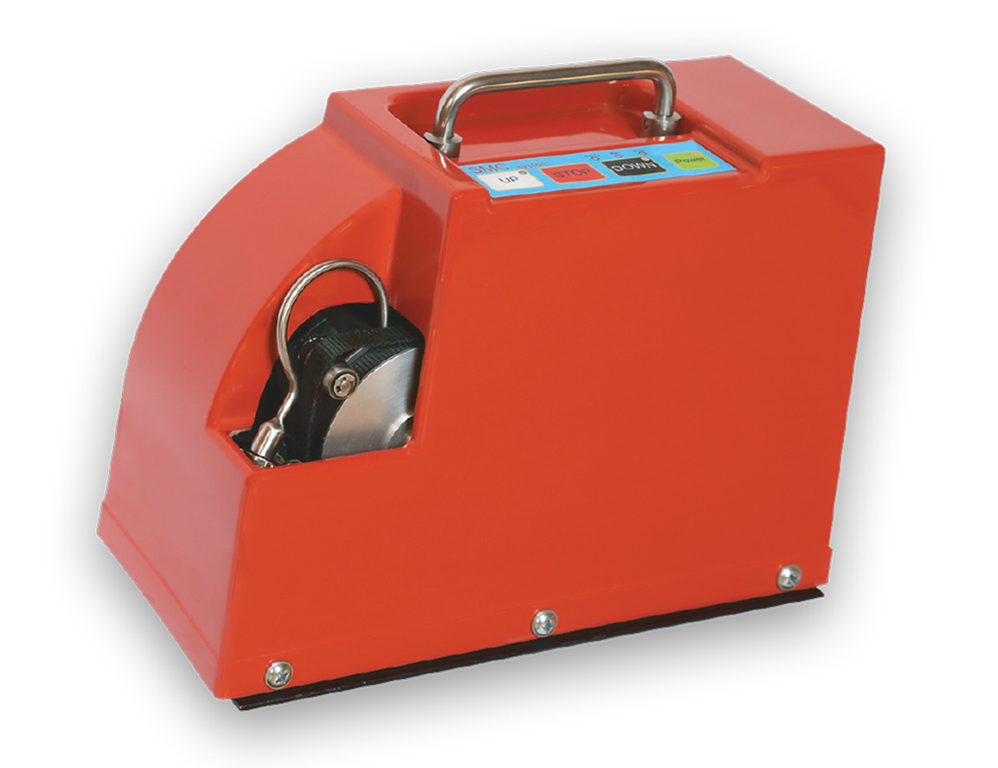

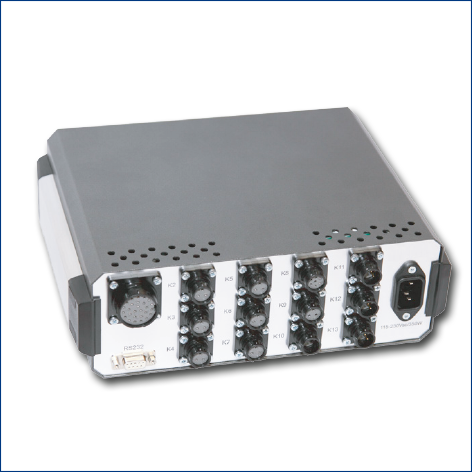

Measurement system 300SMC
allows standard measurement of force characteristic and other collector tests as stated within ČSN EN 50206 (Czech Technical Standard).
- force characteristic measurement up to 300N
- force characteristic measurement up to 300N with silencer
- measurement of the self-trigger function of the system – ADD
- possibility to check the control device
- maximum stroke control
- stroke time of the collector measurement
- launch time of the collector measurement
- air tightness measurement
- cross stiffness measurement
- vibration and shock resistance
- head degrees of freedom measurement
- possibility to adjust protocol print settings
- possibility to customise SW
- possibility to add various language versions
- connection of external sensors for additional measurements in accordance with ČSN EN 5026-1.
Download the datasheet
Accessories:
- Laser sensors for the collector cross stiffness measurement
- Sensors for the head degrees of freedom measurement
- 3D laser scanner for the rail lining profile measurement
- Battery power

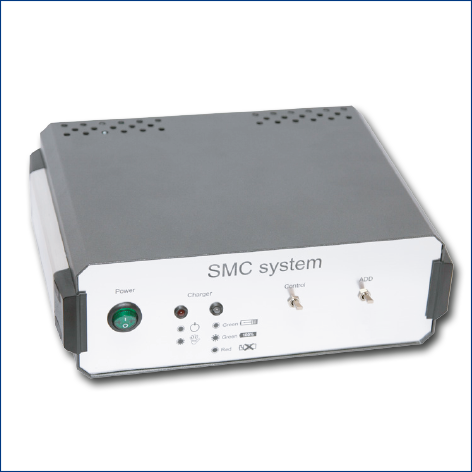

Selected technical parameters of SMC system:
- Force measurement range 0-300 N for 300SMC version
- Force measurement resolution 0,1N
- Force measurement accuracy 0,5% of MH ± 0,1N
- Stroke measurement range 5000mm for both 300 SMC versions
- Stroke measurement resolution 1mm
- Stroke measurement accuracy 0,5% of MH ± 1mm
- Pressure measurement range 0-10bar, resolution 0,01 bar, accuracy 0,5% of MR
- Time measurement 0-24s, accuracy 0,5% of MR
- Power supply 115-230Vac/50-60Hz
- Battery power approx. 8 hours
- Bateriové napájení cca 8hod.
- Work temperature range +5°C to +45°C
- Max relative humidity 90% without condensation
