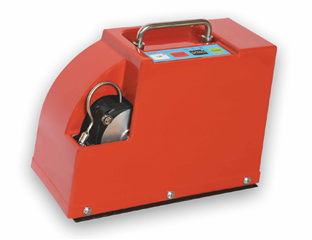

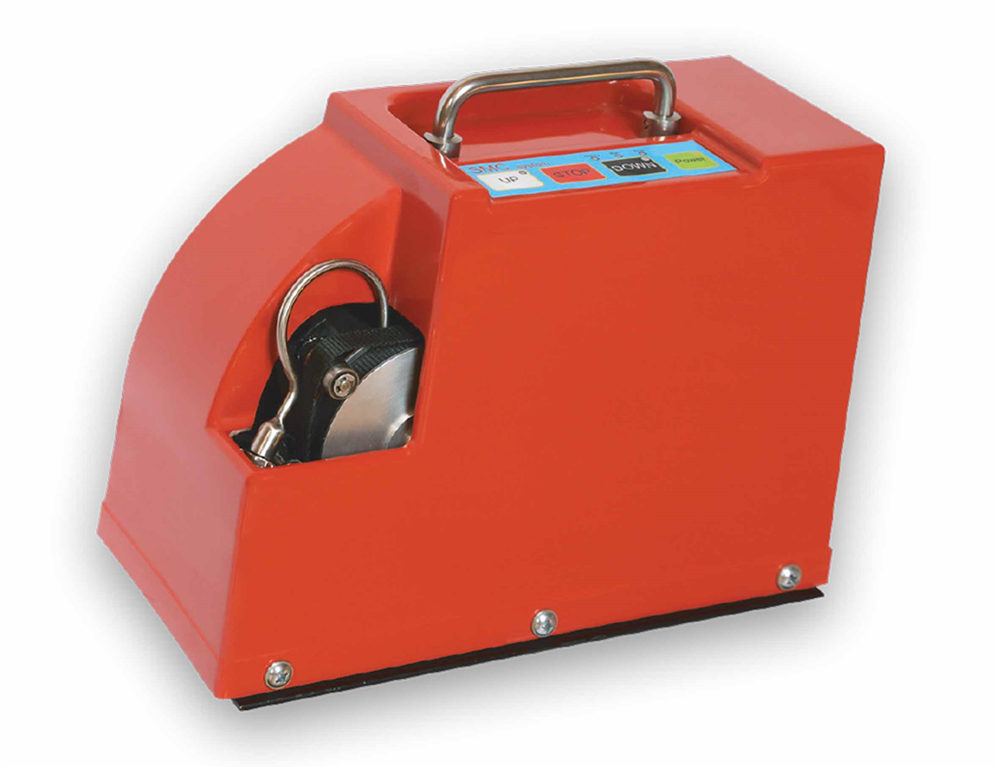

Measuring device SMC - lite
Allows standard measurement of force characteristics up to 150N
Furthermore, it features:
- possibility to adjust print settings for measurement protocols
- possibility to customise SW
- possibility to add various language versions
- test of control unit – CU
- test of maximum lifting
Battery power is not available for this type of device.
System of extended warranty may apply.
Delivery time from 6 to 8 weeks depending on the configuration and individual requests of the customer.
Download the datasheet
Selected technical parameters of SMC system:
- Force measurement range 10-150 N / 300 N, Force measurement resolution 0,1N
- Force measurement accuracy 0,5% of MH ± 0,1N
- Stroke measurement range 5000mm, Stroke measurement resolution 1mm
- Stroke measurement accuracy 0,5% of MH ± 1mm
- Power supply 230V/110V, 50-60Hz, 175W max.
- Work temperature range +5°C to +45°C
- Max relative humidity 90% without condensation
- Coverage: IP 31
- Working environment: regular, indoor, without external mechanical employment and corrosive effects
- Communication interface: RS-232, USB or Ethernet
